Hyperelasticity

Keywords: hyperelasticity, finite strain, large deformations, Newton's method, conjugate gradient, automatic differentiation

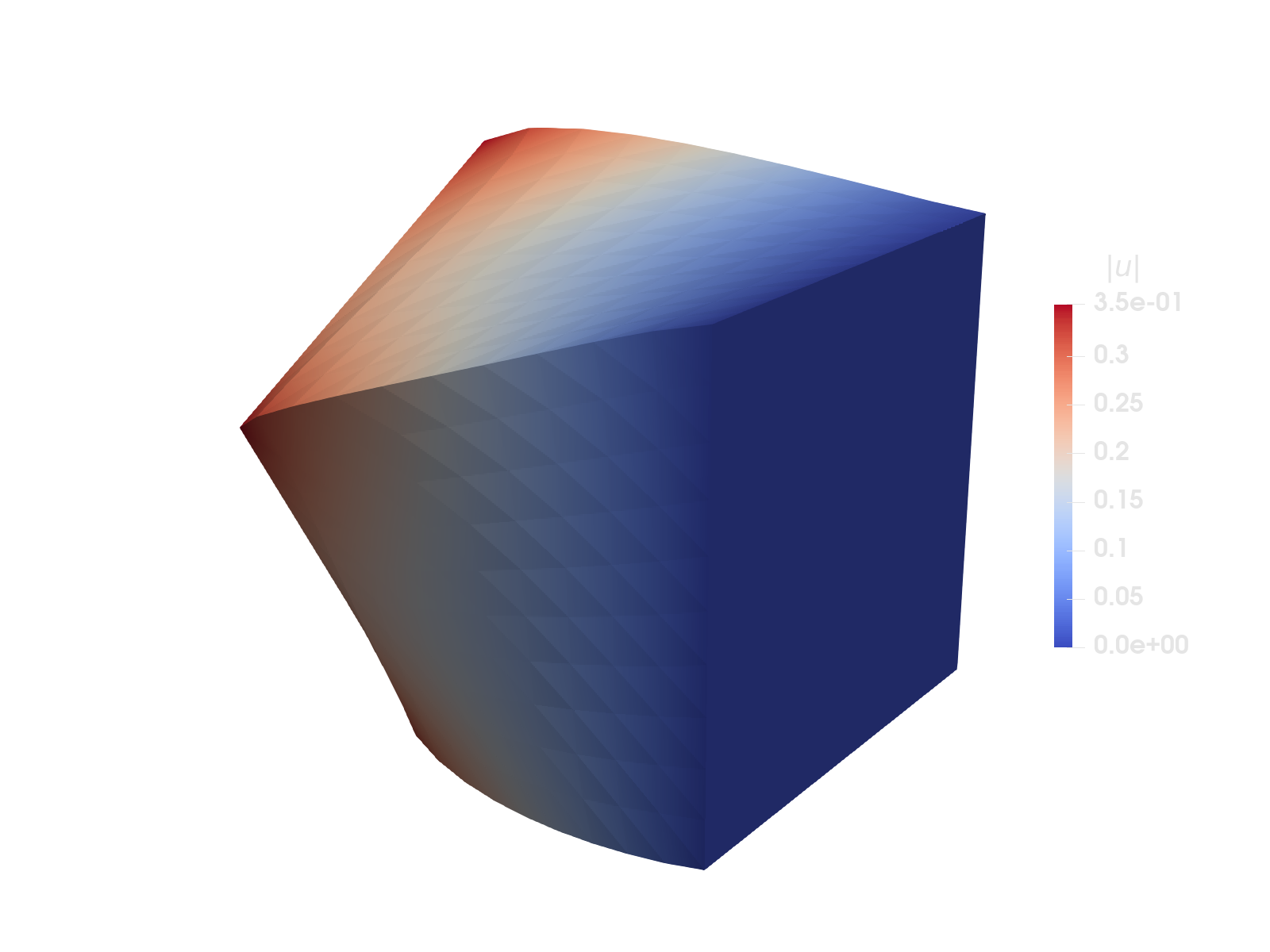

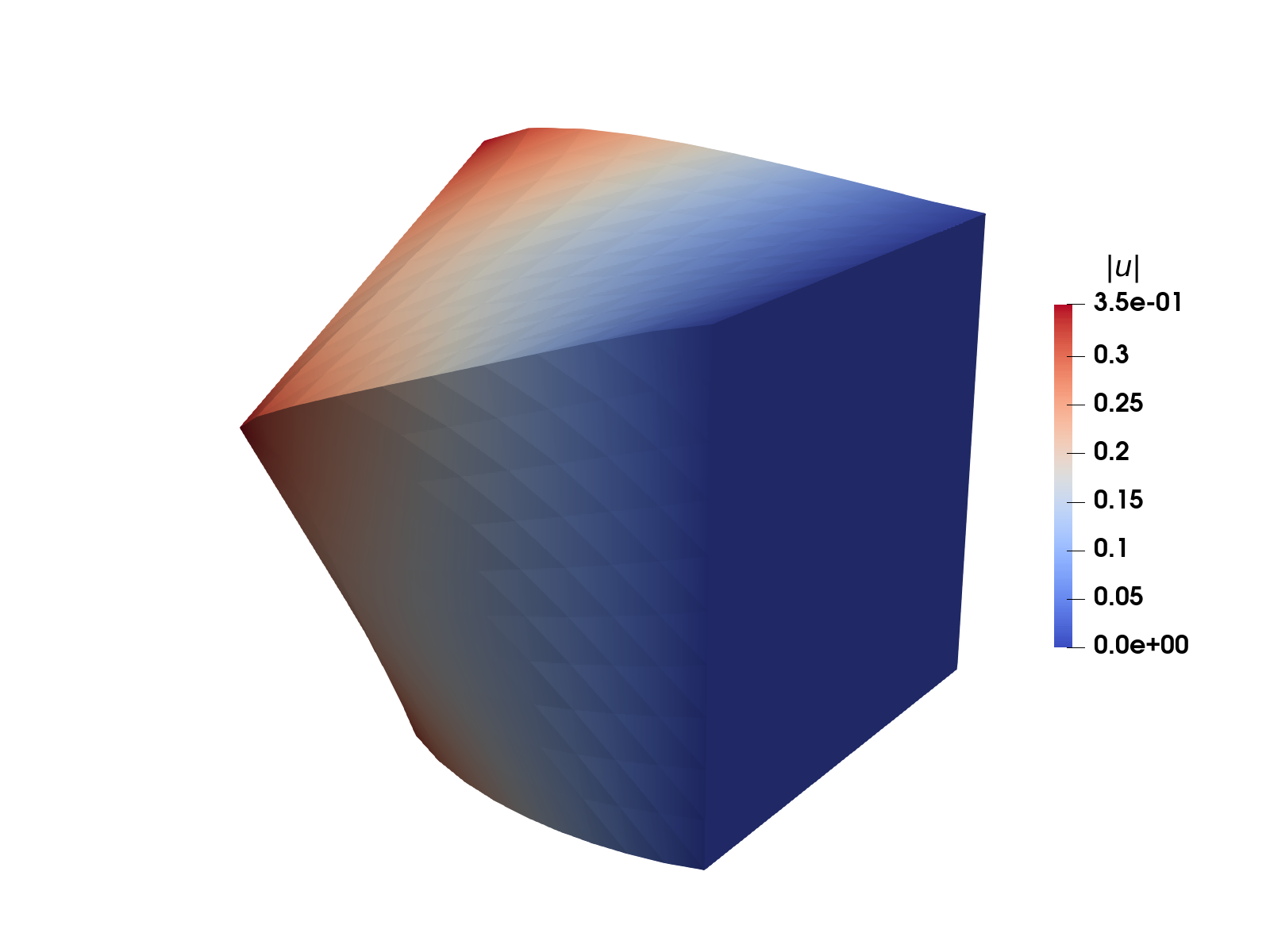

Figure 1: Cube loaded in torsion modeled with a hyperelastic material model and finite strain.

Introduction

In this example we will solve a problem in a finite strain setting using an hyperelastic material model. In order to compute the stress we will use automatic differentiation, to solve the non-linear system we use Newton's method, and for solving the Newton increment we use conjugate gradients.

The weak form is expressed in terms of the first Piola-Kirchoff stress $\mathbf{P}$ as follows: Find $\mathbf{u} \in \mathbb{U}$ such that

\[\int_{\Omega} [\nabla_{\mathbf{X}} \delta \mathbf{u}] : \mathbf{P}(\mathbf{u})\ \mathrm{d}\Omega = \int_{\Omega} \delta \mathbf{u} \cdot \mathbf{b}\ \mathrm{d}\Omega + \int_{\Gamma_\mathrm{N}} \delta \mathbf{u} \cdot \mathbf{t}\ \mathrm{d}\Gamma \quad \forall \delta \mathbf{u} \in \mathbb{U}^0,\]

where $\mathbf{u}$ is the unknown displacement field, $\mathbf{b}$ is the body force acting on the reference domain, $\mathbf{t}$ is the traction acting on the Neumann part of the reference domain's boundary, and where $\mathbb{U}$ and $\mathbb{U}^0$ are suitable trial and test sets. $\Omega$ denotes the reference (sometimes also called initial or material) domain. Gradients are defined with respect to the reference domain, here denoted with an $\mathbf{X}$. Formally this is expressed as $(\nabla_{\mathbf{X}} \bullet)_{ij} := \frac{\partial(\bullet)_i}{\partial X_j}$. Note that for large deformation problems it is also possible that gradients and integrals are defined on the deformed (sometimes also called current or spatial) domain, depending on the specific formulation.

The specific problem we will solve in this example is the cube from Figure 1: On one side we apply a rotation using Dirichlet boundary conditions, on the opposite side we fix the displacement with a homogeneous Dirichlet boundary condition, and on the remaining four sides we apply a traction in the normal direction of the surface. In addition, a body force is applied in one direction.

In addition to Ferrite.jl and Tensors.jl, this examples uses TimerOutputs.jl for timing the program and print a summary at the end, ProgressMeter.jl for showing a simple progress bar, and IterativeSolvers.jl for solving the linear system using conjugate gradients.

using Ferrite, Tensors, TimerOutputs, ProgressMeter, IterativeSolvers

Hyperelastic material model

The stress can be derived from an energy potential, defined in terms of the right Cauchy-Green tensor $\mathbf{C} = \mathbf{F}^{\mathrm{T}} \cdot \mathbf{F}$, where $\mathbf{F} = \mathbf{I} + \nabla_{\mathbf{X}} \mathbf{u}$ is the deformation gradient. We shall use the compressible neo-Hookean model from Wikipedia with the potential

\[\Psi(\mathbf{C}) = \underbrace{\frac{\mu}{2} (I_1 - 3)}_{W(\mathbf{C})} \underbrace{- {\mu} \ln(J) + \frac{\lambda}{2} (J - 1)^2}_{U(J)},\]

where $I_1 = \mathrm{tr}(\mathbf{C})$ is the first invariant, $J = \sqrt{\det(\mathbf{C})}$ and $\mu$ and $\lambda$ material parameters.

From the potential we obtain the second Piola-Kirchoff stress $\mathbf{S}$ as

\[\mathbf{S} = 2 \frac{\partial \Psi}{\partial \mathbf{C}},\]

and the tangent of $\mathbf{S}$ as

\[\frac{\partial \mathbf{S}}{\partial \mathbf{C}} = 2 \frac{\partial^2 \Psi}{\partial \mathbf{C}^2}.\]

Finally, for the finite element problem we need $\mathbf{P}$ and $\frac{\partial \mathbf{P}}{\partial \mathbf{F}}$, which can be obtained by using the following relations:

\[\begin{align*} \mathbf{P} &= \mathbf{F} \cdot \mathbf{S},\\ \frac{\partial \mathbf{P}}{\partial \mathbf{F}} &= \mathbf{I} \bar{\otimes} \mathbf{S} + 2\, \mathbf{F} \bar{\otimes} \mathbf{I} : \frac{\partial \mathbf{S}}{\partial \mathbf{C}} : \mathbf{F}^\mathrm{T} \bar{\otimes} \mathbf{I}. \end{align*}\]

Implementation of material model using automatic differentiation

We can implement the material model as follows, where we utilize automatic differentiation for the stress and the tangent, and thus only define the potential:

struct NeoHooke
    μ::Float64
    λ::Float64
end

function Ψ(C, mp::NeoHooke)
    μ = mp.μ
    λ = mp.λ
    Ic = tr(C)
    J = sqrt(det(C))
    return μ / 2 * (Ic - 3 - 2 * log(J)) + λ / 2 * (J - 1)^2
end

function constitutive_driver(C, mp::NeoHooke)
    # Compute all derivatives in one function call
    ∂²Ψ∂C², ∂Ψ∂C = Tensors.hessian(y -> Ψ(y, mp), C, :all)
    S = 2.0 * ∂Ψ∂C
    ∂S∂C = 2.0 * ∂²Ψ∂C²
    return S, ∂S∂C
end;

Newton's method

As mentioned above, to deal with the non-linear weak form we first linearize the problem such that we can apply Newton's method, and then apply the FEM to discretize the problem. Skipping a detailed derivation, Newton's method can be expressed as: Given some initial guess for the degrees of freedom $\underline{u}^0$, find a sequence $\underline{u}^{k}$ by iterating

\[\underline{u}^{k+1} = \underline{u}^{k} - \Delta \underline{u}^{k}\]

until some termination condition has been met. Therein we determine $\Delta \underline{u}^{k}$ from the linearized problem

\[\underline{\underline{K}}(\underline{u}^{k}) \Delta \underline{u}^{k} = \underline{g}(\underline{u}^{k})\]

where the global residual, $\underline{g}$, and the Jacobi matrix, $\underline{\underline{K}} = \frac{\partial \underline{g}}{\partial \underline{u}}$, are evaluated at the current guess $\underline{u}^k$. The entries of $\underline{g}$ are given by

\[(\underline{g})_{i} = \int_{\Omega} [\nabla_{\mathbf{X}} \delta \mathbf{u}_{i}] : \mathbf{P} \, \mathrm{d} \Omega - \int_{\Omega} \delta \mathbf{u}_{i} \cdot \mathbf{b} \, \mathrm{d} \Omega - \int_{\Gamma_\mathrm{N}} \delta \mathbf{u}_i \cdot \mathbf{t}\ \mathrm{d}\Gamma,\]

and the entries of $\underline{\underline{K}}$ are given by

\[(\underline{\underline{K}})_{ij} = \int_{\Omega} [\nabla_{\mathbf{X}} \delta \mathbf{u}_{i}] : \frac{\partial \mathbf{P}}{\partial \mathbf{F}} : [\nabla_{\mathbf{X}} \delta \mathbf{u}_{j}] \, \mathrm{d} \Omega.\]

A detailed derivation can be found in every continuum mechanics book, which has a chapter about finite elasticity theory. We used "Nonlinear solid mechanics: a continuum approach for engineering science." by Holzapfel [1], Chapter 8 as a reference.

Finite element assembly

The element routine for assembling the residual and tangent stiffness is implemented as usual, with loops over quadrature points and shape functions:

function assemble_element!(ke, ge, cell, cv, fv, mp, ue, ΓN)
    # Reinitialize cell values, and reset output arrays
    reinit!(cv, cell)
    fill!(ke, 0.0)
    fill!(ge, 0.0)

    b = Vec{3}((0.0, -0.5, 0.0)) # Body force
    tn = 0.1 # Traction (to be scaled with surface normal)
    ndofs = getnbasefunctions(cv)

    for qp in 1:getnquadpoints(cv)
        dΩ = getdetJdV(cv, qp)
        # Compute deformation gradient F and right Cauchy-Green tensor C
        ∇u = function_gradient(cv, qp, ue)
        F = one(∇u) + ∇u
        C = tdot(F) # F' ⋅ F
        # Compute stress and tangent
        S, ∂S∂C = constitutive_driver(C, mp)
        P = F ⋅ S
        I = one(S)
        ∂P∂F =  otimesu(I, S) + 2 * otimesu(F, I) ⊡ ∂S∂C ⊡ otimesu(F', I)

        # Loop over test functions
        for i in 1:ndofs
            # Test function and gradient
            δui = shape_value(cv, qp, i)
            ∇δui = shape_gradient(cv, qp, i)
            # Add contribution to the residual from this test function
            ge[i] += ( ∇δui ⊡ P - δui ⋅ b ) * dΩ

            ∇δui∂P∂F = ∇δui ⊡ ∂P∂F # Hoisted computation
            for j in 1:ndofs
                ∇δuj = shape_gradient(cv, qp, j)
                # Add contribution to the tangent
                ke[i, j] += ( ∇δui∂P∂F ⊡ ∇δuj ) * dΩ
            end
        end
    end

    # Surface integral for the traction
    for facet in 1:nfacets(cell)
        if (cellid(cell), facet) in ΓN
            reinit!(fv, cell, facet)
            for q_point in 1:getnquadpoints(fv)
                t = tn * getnormal(fv, q_point)
                dΓ = getdetJdV(fv, q_point)
                for i in 1:ndofs
                    δui = shape_value(fv, q_point, i)
                    ge[i] -= (δui ⋅ t) * dΓ
                end
            end
        end
    end
end;

Assembling global residual and tangent is also done in the usual way, just looping over the elements, call the element routine and assemble in the the global matrix K and residual g.

function assemble_global!(K, g, dh, cv, fv, mp, u, ΓN)
    n = ndofs_per_cell(dh)
    ke = zeros(n, n)
    ge = zeros(n)

    # start_assemble resets K and g
    assembler = start_assemble(K, g)

    # Loop over all cells in the grid
    @timeit "assemble" for cell in CellIterator(dh)
        global_dofs = celldofs(cell)
        ue = u[global_dofs] # element dofs
        @timeit "element assemble" assemble_element!(ke, ge, cell, cv, fv, mp, ue, ΓN)
        assemble!(assembler, global_dofs, ke, ge)
    end
end;

Finally, we define a main function which sets up everything and then performs Newton iterations until convergence.

function solve()
    reset_timer!()

    # Generate a grid
    N = 10
    L = 1.0
    left = zero(Vec{3})
    right = L * ones(Vec{3})
    grid = generate_grid(Tetrahedron, (N, N, N), left, right)

    # Material parameters
    E = 10.0
    ν = 0.3
    μ = E / (2(1 + ν))
    λ = (E * ν) / ((1 + ν) * (1 - 2ν))
    mp = NeoHooke(μ, λ)

    # Finite element base
    ip = Lagrange{RefTetrahedron, 1}()^3
    qr = QuadratureRule{RefTetrahedron}(1)
    qr_facet = FacetQuadratureRule{RefTetrahedron}(1)
    cv = CellValues(qr, ip)
    fv = FacetValues(qr_facet, ip)

    # DofHandler
    dh = DofHandler(grid)
    add!(dh, :u, ip) # Add a displacement field
    close!(dh)

    function rotation(X, t)
        θ = pi / 3 # 60°
        x, y, z = X
        return t * Vec{3}((
            0.0,
            L/2 - y + (y-L/2)*cos(θ) - (z-L/2)*sin(θ),
            L/2 - z + (y-L/2)*sin(θ) + (z-L/2)*cos(θ)
        ))
    end

    dbcs = ConstraintHandler(dh)
    # Add a homogeneous boundary condition on the "clamped" edge
    dbc = Dirichlet(:u, getfacetset(grid, "right"), (x,t) -> [0.0, 0.0, 0.0], [1, 2, 3])
    add!(dbcs, dbc)
    dbc = Dirichlet(:u, getfacetset(grid, "left"), (x,t) -> rotation(x, t), [1, 2, 3])
    add!(dbcs, dbc)
    close!(dbcs)
    t = 0.5
    Ferrite.update!(dbcs, t)

    # Neumann part of the boundary
    ΓN = union(
        getfacetset(grid, "top"),
        getfacetset(grid, "bottom"),
        getfacetset(grid, "front"),
        getfacetset(grid, "back"),
    )

    # Pre-allocation of vectors for the solution and Newton increments
    _ndofs = ndofs(dh)
    un = zeros(_ndofs) # previous solution vector
    u  = zeros(_ndofs)
    Δu = zeros(_ndofs)
    ΔΔu = zeros(_ndofs)
    apply!(un, dbcs)

    # Create sparse matrix and residual vector
    K = allocate_matrix(dh)
    g = zeros(_ndofs)

    # Perform Newton iterations
    newton_itr = -1
    NEWTON_TOL = 1e-8
    NEWTON_MAXITER = 30
    prog = ProgressMeter.ProgressThresh(NEWTON_TOL; desc = "Solving:")

    while true; newton_itr += 1
        # Construct the current guess
        u .= un .+ Δu
        # Compute residual and tangent for current guess
        assemble_global!(K, g, dh, cv, fv, mp, u, ΓN)
        # Apply boundary conditions
        apply_zero!(K, g, dbcs)
        # Compute the residual norm and compare with tolerance
        normg = norm(g)
        ProgressMeter.update!(prog, normg; showvalues = [(:iter, newton_itr)])
        if normg < NEWTON_TOL
            break
        elseif newton_itr > NEWTON_MAXITER
            error("Reached maximum Newton iterations, aborting")
        end

        # Compute increment using conjugate gradients
        @timeit "linear solve" IterativeSolvers.cg!(ΔΔu, K, g; maxiter=1000)

        apply_zero!(ΔΔu, dbcs)
        Δu .-= ΔΔu
    end

    # Save the solution
    @timeit "export" begin
        VTKGridFile("hyperelasticity", dh) do vtk
            write_solution(vtk, dh, u)
        end
    end

    print_timer(title = "Analysis with $(getncells(grid)) elements", linechars = :ascii)
    return u
end

solve (generic function with 1 method)

Run the simulation

u = solve();

Solving: (thresh = 1e-08, value = 0.000259699)
  iter:  3


Solving: Time: 0:00:00 (6 iterations)
  iter:  5
 -------------------------------------------------------------------------------
  Analysis with 6000 elements          Time                    Allocations
                              -----------------------   ------------------------
       Tot / % measured:           301ms /  63.2%           29.0MiB /  34.4%

 Section              ncalls     time    %tot     avg     alloc    %tot      avg
 -------------------------------------------------------------------------------
 assemble                  6    103ms   53.9%  17.1ms   5.50MiB   55.2%   938KiB
   element assemble    36.0k   59.3ms   31.1%  1.65μs     0.00B    0.0%    0.00B
 linear solve              5   74.1ms   38.9%  14.8ms    473KiB    4.6%  94.6KiB
 export                    1   13.8ms    7.2%  13.8ms   4.01MiB   40.2%  4.01MiB
 -------------------------------------------------------------------------------

Plain program

Here follows a version of the program without any comments. The file is also available here: hyperelasticity.jl.

using Ferrite, Tensors, TimerOutputs, ProgressMeter, IterativeSolvers

struct NeoHooke
    μ::Float64
    λ::Float64
end

function Ψ(C, mp::NeoHooke)
    μ = mp.μ
    λ = mp.λ
    Ic = tr(C)
    J = sqrt(det(C))
    return μ / 2 * (Ic - 3 - 2 * log(J)) + λ / 2 * (J - 1)^2
end

function constitutive_driver(C, mp::NeoHooke)
    # Compute all derivatives in one function call
    ∂²Ψ∂C², ∂Ψ∂C = Tensors.hessian(y -> Ψ(y, mp), C, :all)
    S = 2.0 * ∂Ψ∂C
    ∂S∂C = 2.0 * ∂²Ψ∂C²
    return S, ∂S∂C
end;

function assemble_element!(ke, ge, cell, cv, fv, mp, ue, ΓN)
    # Reinitialize cell values, and reset output arrays
    reinit!(cv, cell)
    fill!(ke, 0.0)
    fill!(ge, 0.0)

    b = Vec{3}((0.0, -0.5, 0.0)) # Body force
    tn = 0.1 # Traction (to be scaled with surface normal)
    ndofs = getnbasefunctions(cv)

    for qp in 1:getnquadpoints(cv)
        dΩ = getdetJdV(cv, qp)
        # Compute deformation gradient F and right Cauchy-Green tensor C
        ∇u = function_gradient(cv, qp, ue)
        F = one(∇u) + ∇u
        C = tdot(F) # F' ⋅ F
        # Compute stress and tangent
        S, ∂S∂C = constitutive_driver(C, mp)
        P = F ⋅ S
        I = one(S)
        ∂P∂F =  otimesu(I, S) + 2 * otimesu(F, I) ⊡ ∂S∂C ⊡ otimesu(F', I)

        # Loop over test functions
        for i in 1:ndofs
            # Test function and gradient
            δui = shape_value(cv, qp, i)
            ∇δui = shape_gradient(cv, qp, i)
            # Add contribution to the residual from this test function
            ge[i] += ( ∇δui ⊡ P - δui ⋅ b ) * dΩ

            ∇δui∂P∂F = ∇δui ⊡ ∂P∂F # Hoisted computation
            for j in 1:ndofs
                ∇δuj = shape_gradient(cv, qp, j)
                # Add contribution to the tangent
                ke[i, j] += ( ∇δui∂P∂F ⊡ ∇δuj ) * dΩ
            end
        end
    end

    # Surface integral for the traction
    for facet in 1:nfacets(cell)
        if (cellid(cell), facet) in ΓN
            reinit!(fv, cell, facet)
            for q_point in 1:getnquadpoints(fv)
                t = tn * getnormal(fv, q_point)
                dΓ = getdetJdV(fv, q_point)
                for i in 1:ndofs
                    δui = shape_value(fv, q_point, i)
                    ge[i] -= (δui ⋅ t) * dΓ
                end
            end
        end
    end
end;

function assemble_global!(K, g, dh, cv, fv, mp, u, ΓN)
    n = ndofs_per_cell(dh)
    ke = zeros(n, n)
    ge = zeros(n)

    # start_assemble resets K and g
    assembler = start_assemble(K, g)

    # Loop over all cells in the grid
    @timeit "assemble" for cell in CellIterator(dh)
        global_dofs = celldofs(cell)
        ue = u[global_dofs] # element dofs
        @timeit "element assemble" assemble_element!(ke, ge, cell, cv, fv, mp, ue, ΓN)
        assemble!(assembler, global_dofs, ke, ge)
    end
end;

function solve()
    reset_timer!()

    # Generate a grid
    N = 10
    L = 1.0
    left = zero(Vec{3})
    right = L * ones(Vec{3})
    grid = generate_grid(Tetrahedron, (N, N, N), left, right)

    # Material parameters
    E = 10.0
    ν = 0.3
    μ = E / (2(1 + ν))
    λ = (E * ν) / ((1 + ν) * (1 - 2ν))
    mp = NeoHooke(μ, λ)

    # Finite element base
    ip = Lagrange{RefTetrahedron, 1}()^3
    qr = QuadratureRule{RefTetrahedron}(1)
    qr_facet = FacetQuadratureRule{RefTetrahedron}(1)
    cv = CellValues(qr, ip)
    fv = FacetValues(qr_facet, ip)

    # DofHandler
    dh = DofHandler(grid)
    add!(dh, :u, ip) # Add a displacement field
    close!(dh)

    function rotation(X, t)
        θ = pi / 3 # 60°
        x, y, z = X
        return t * Vec{3}((
            0.0,
            L/2 - y + (y-L/2)*cos(θ) - (z-L/2)*sin(θ),
            L/2 - z + (y-L/2)*sin(θ) + (z-L/2)*cos(θ)
        ))
    end

    dbcs = ConstraintHandler(dh)
    # Add a homogeneous boundary condition on the "clamped" edge
    dbc = Dirichlet(:u, getfacetset(grid, "right"), (x,t) -> [0.0, 0.0, 0.0], [1, 2, 3])
    add!(dbcs, dbc)
    dbc = Dirichlet(:u, getfacetset(grid, "left"), (x,t) -> rotation(x, t), [1, 2, 3])
    add!(dbcs, dbc)
    close!(dbcs)
    t = 0.5
    Ferrite.update!(dbcs, t)

    # Neumann part of the boundary
    ΓN = union(
        getfacetset(grid, "top"),
        getfacetset(grid, "bottom"),
        getfacetset(grid, "front"),
        getfacetset(grid, "back"),
    )

    # Pre-allocation of vectors for the solution and Newton increments
    _ndofs = ndofs(dh)
    un = zeros(_ndofs) # previous solution vector
    u  = zeros(_ndofs)
    Δu = zeros(_ndofs)
    ΔΔu = zeros(_ndofs)
    apply!(un, dbcs)

    # Create sparse matrix and residual vector
    K = allocate_matrix(dh)
    g = zeros(_ndofs)

    # Perform Newton iterations
    newton_itr = -1
    NEWTON_TOL = 1e-8
    NEWTON_MAXITER = 30
    prog = ProgressMeter.ProgressThresh(NEWTON_TOL; desc = "Solving:")

    while true; newton_itr += 1
        # Construct the current guess
        u .= un .+ Δu
        # Compute residual and tangent for current guess
        assemble_global!(K, g, dh, cv, fv, mp, u, ΓN)
        # Apply boundary conditions
        apply_zero!(K, g, dbcs)
        # Compute the residual norm and compare with tolerance
        normg = norm(g)
        ProgressMeter.update!(prog, normg; showvalues = [(:iter, newton_itr)])
        if normg < NEWTON_TOL
            break
        elseif newton_itr > NEWTON_MAXITER
            error("Reached maximum Newton iterations, aborting")
        end

        # Compute increment using conjugate gradients
        @timeit "linear solve" IterativeSolvers.cg!(ΔΔu, K, g; maxiter=1000)

        apply_zero!(ΔΔu, dbcs)
        Δu .-= ΔΔu
    end

    # Save the solution
    @timeit "export" begin
        VTKGridFile("hyperelasticity", dh) do vtk
            write_solution(vtk, dh, u)
        end
    end

    print_timer(title = "Analysis with $(getncells(grid)) elements", linechars = :ascii)
    return u
end

u = solve();
